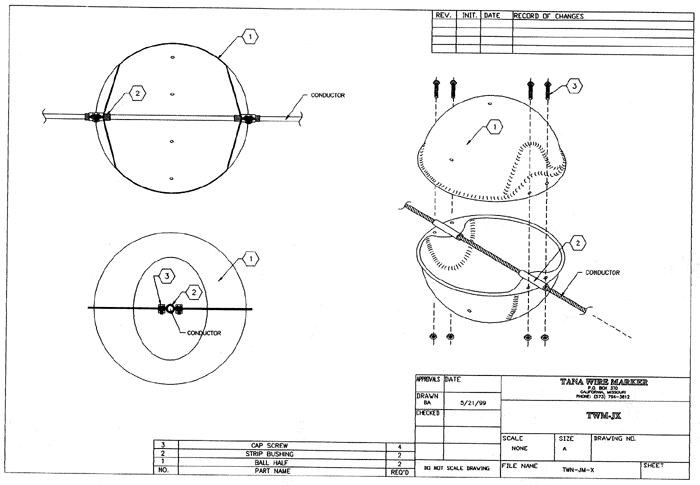

Go To Schematic

TWM - JX

he Model JX, we feel, is an improvement over the Model SD.  It is easier to install, having only four bolts to clamp it to the wire, and has a larger contact area with the wire for a more secure attachment.

The minimal difference in price between this Marker and the Model SD makes this one of our most popular choices.

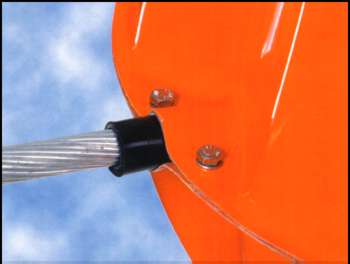

This Marker also installs easily on any wire 1/8" - 1" (Custom wire sizes are available) through the use of two UV resistant neoprene strip bushings installed on the wire to match the diameter of the openings (boss) in the Marker.  The Marker is then securely bolted around the wire, clamping down on the bushings.

This Marker is appropriate for neutral wires, guy wires, and conductor wires up to 69KV only.
